Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WDF
  • Model Number: 787
  • Base Material: Polyimide(Kapton)
  • Copper Thickness: 1/2oz;1OZ;1/3oz
  • Board Thickness: 0.08mm~0.12mm
  • Min. Hole Size: 0.15 MM
  • Min. Line Width: 0.07 mm~0.15mm
  • Min. Line Spacing: 0.07 mm~0.15mm
  • Surface Finishing: HASL
  • layer counter: single layer

Packaging & Delivery

Packaging Details Inner package: Vacuum package+dryer
Outer package:Carton package+Bulb package
Delivery Time Prototype:2 days for 1L; 4 days for 2L;

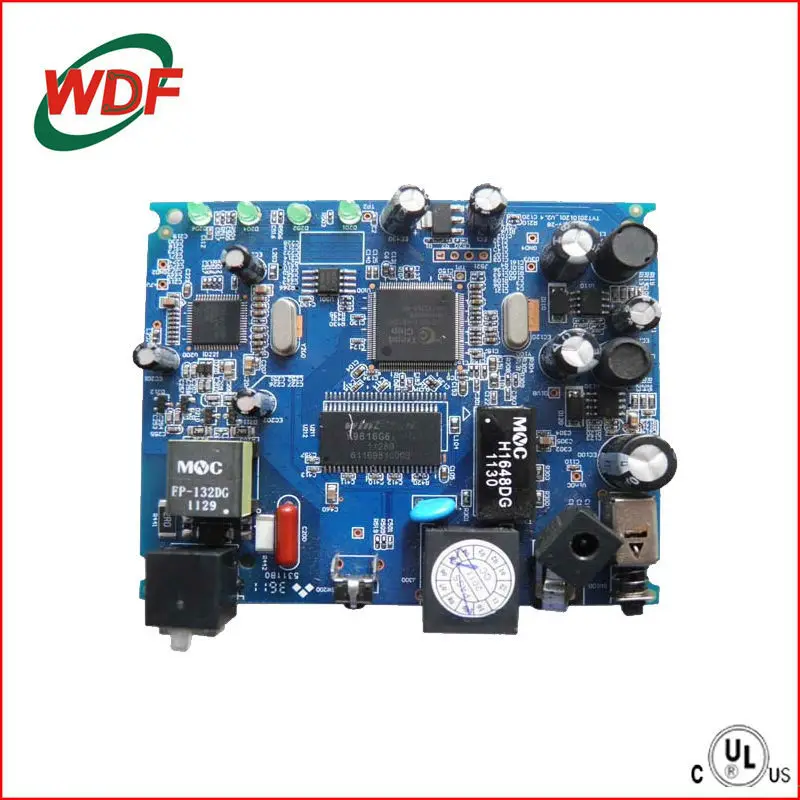

Customized high quality pcb board



1. ONE-STOP-SERVICE

2. OEM service

3. Gerber file needed

4. PCB clone with sample

5. Quality guarantee and professional after-sell service







Our Services

Our Production Capability for PCB:

Layer1 to 28 layers
Material typeFR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
Board thickness0.21mm to 7.0mm
Copper thickness0.5 OZ to 7.0 OZ
Copper thickness in hole>25.0 um (>1mil)
Size- Max. Board Size: 23 × 25 (580mm×900mm)
- Min. Drilled Hole Size: 3mil (0.075mm)
- Min. Line Width: 3mil (0.075mm)
- Min. Line Spacing: 3mil (0.075mm)
Surface finishingHASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
Solder Mask ColorGreen/Yellow/Black/White/Red/Blue
Tolerance- Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05
PCB Packing- Inner packing: Vacuum packing / Plastic bag
- Outer packing: Standard carton packing
CertificateUL, ISO 9001, ISO 14001
Special requirementsBuried and blind vias+controlled impedance +BGA
ProfilingPunching, Routing, V-CUT, Beveling

Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.







Company Information

Shenzhen Wonderful technology Co.,LTD.Is a professional design company of printed circuit board or printed circuit board assembly manufacturing.Founded in 1996,Founded in Hong Kong in 2002 Wonderful PCB(HK)Limited By the end of 2007 by total assets of nearly 100 million yuan. Nearly 20,000 square meters,the workshop area more than 700 employees,40,000 sq.m/design production capacity.The company has passed ISO9001-2000 certification and UL certification,ISO14001 certificate,and regarded as "shenzhen by shenzhen hi-tech enterprise". The company product widely used in communication,medical,industrial control,household appliances,etc,the products are mainly exported to southeast Asia,Europe and area.We can manufacture PCB,PCBA and other related products according to your demands.

The high technology as a starting point,the use of first-class equipment and raw material production and sales of high precision ,high density multi-layer LCD as our products and technology development direction,build up the company:"linePossess first-class PCB enterprise"as our vision ,to provide high quality electronic information industry PCB production Satisfactory products and sincere service" as our mission.









Our Strength

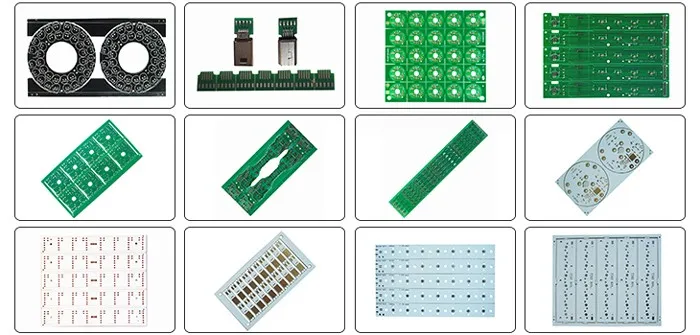

pcb and pcba manufacturer provides various kinds of pcb.



If you are interested in our products,pl feel free to contact us.

We would like to support you with factory price and high quality.



Skype:wonderful-05

Whatspp:+8615118061201
