Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WDF
  • Model Number: wdf761
  • Number of Layers: 6-Layer
  • Base Material: FR4
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.2mm
  • Min. Line Width: 0.1mm
  • Min. Line Spacing: 0.1mm
  • Surface Finishing: ENIG
  • Product name: 4 oz copper thickness 6 layer pcb
  • Color: green/yellow/black/white/red/blue
  • Layer: 1-28 Layer
  • Material: FR-4, CEM-1,CEM-3, High TG, FR4 Halogen Free,Rogers
  • Min. drilled hole size: 3mil (0.075mm)
  • Copper thickness: 0.5-7.0 OZ
  • Copper thickness in hole: >25.0 um (>1mil)
  • Inner packing: Vacuum packing / Plastic bag
  • Outer packing: Standard carton packing
  • Shape tolerance: ±0.13

Packaging & Delivery

Packaging Details Inner packing: Vacuum packing
Outer packing: Standard exporting carton packing
Product Description

4 oz copper thickness 6 layer pcb base with FR4 high TG 170

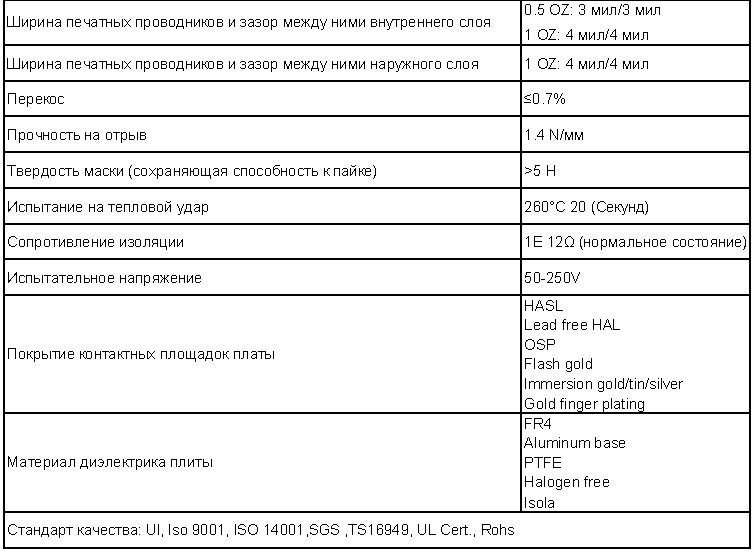

Our Production Capability for PCB:



Layer1-28
Board finished thickness0.21mm-7.0mm
MaterialFR-4, CEM-1,CEM-3, High TG, FR4 Halogen Free,Rogers
Max. finished board size23 × 25  ( 580mm×900mm )
Min. drilled hole size3mil (0.075mm)
Min. Line width3mil (0.075mm)
Min.Line spacing3mil (0.075mm)
Surface finish/treatmentHASL / HASL lead free,HAL, Chemical tin,Chemical Gold, Immersion Silver/Gold,OSP,Gold plating
Copper thickness0.5-7.0 OZ
Solder mask colorgreen/yellow/black/white/red/blue
Copper thickness in hole>25.0 um  (>1mil)
Inner packingVacuum packing / Plastic bag
Outer packingStandard carton packing
Shape tolerance±0.13
Hole tolerancePTH: ±0.076   NPTH: ±0.05
Special requirementsBuried and blind vias+controlled impedance +BGA
ProfilingPunching, Routing, V-CUT, Beveling
CertificateROHS, UL, ISO9001-2000, ISO14001
E-Testing
100% E-Testing (High Voltage Testing);  Flying Probe Testing
Date file format
GERBER FILE and DRILLING FILE, PROTEL SERIES, PADS2000 SERIES, Powerpcb SERIES, ODB++

Contact us to check out great PCBs and full details, we will reply to you with prices in one working day!

  • OEM services provided
  • Certificate: ROHS, UL, ISO9001-2000, ISO14001
  • Factory direct price
  • 4 oz copper base with FR4 high TG 170

Our shows:







Certificates:

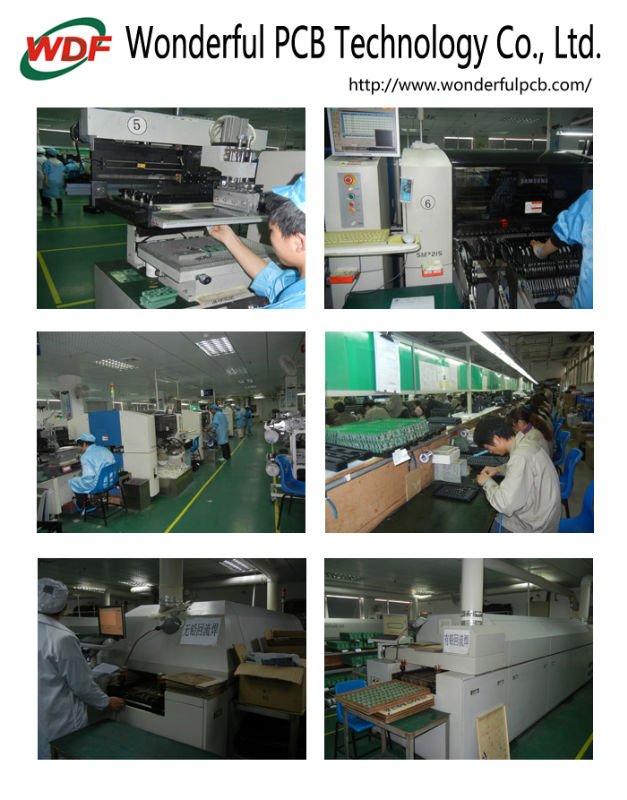

Our factory:

Our office:
