Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WDF
  • Model Number: FPC13
  • Number of Layers: single side
  • Base Material: PI
  • Copper Thickness: 1OZ
  • Board Thickness: 0.10mm
  • Min. Hole Size: 0.22mm
  • Min. Line Width: 0.2mm
  • Min. Line Spacing: 0.10mm
  • Surface Finishing: ENIG
  • colour: Yellow

Packaging & Delivery

Packaging Details vacuumized packing insided
Delivery Time 8 work days after getting orders

Specifications

flexible pcb for recreational machines,
PI material,
single side

flexible pcb for recreational machines,single side.

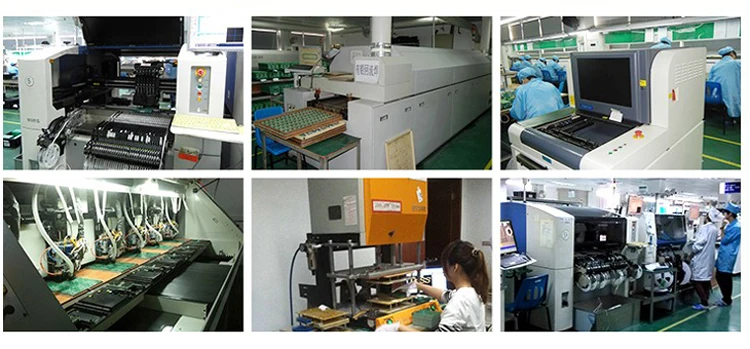

Our Production Capability for PCB

  • Layer: 1 to 28 layers
  • Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
  • Board thickness: 0.21mm to 7.0mm
  • Copper thickness: 0.5 OZ to 7.0 OZ
  • Copper thickness in hole: >25.0 um (>1mil)
  • Size:

- Max. Board Size: 23 × 25 (580mm×900mm)
- Min. Drilled Hole Size: 3mil (0.075mm)
- Min. Line Width: 3mil (0.075mm)
- Min. Line Spacing: 3mil (0.075mm)

  • Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
  • Solder Mask Color: Green/Yellow/Black/White/Red/Blue
  • Tolerance

- Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05

  • PCB Packing

- Inner packing: Vacuum packing / Plastic bag
- Outer packing: Standard carton packing

  • Certificate: UL, ISO 9001, ISO 14001
  • Special requirements: Buried and blind vias+controlled impedance +BGA
  • Profiling: Punching, Routing, V-CUT, Beveling
  • Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.



Contact us to check out great PCBs and full details, we will reply to you with prices in one working day!

  • OEM services provided
  • Certificate: ROHS, UL, ISO9001-2000, ISO14001
  • Factory direct price
  • Paypal available
