Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WDF
  • Model Number: WDF1641
  • Base Material: FR4
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.2mm
  • Min. Line Width: 0.15mm
  • Min. Line Spacing: 0.15mm
  • Surface Finishing: ENIG/HASL
  • solder mask color: black/blue/red/green
  • surface finish: ENIG/HASL
  • Type: Pcb Assembly/electronics component

Packaging & Delivery

Packaging Details Our PCB assembly packaging: vacuumized packing insided.Inner package: Vacuum package+dryer ;Outer package:Carton package+Bulb package.
Delivery Time Shipped in 10 days after payment

PCB electronic components and PCB assembly



Product Description



OEM/ODM/EMS Services for PCB Assembly:

1.  PCBA, PCB assembly: SMT & PTH & BGA

2.  PCBA and enclosure design

3.  Components sourcing and purchasing

4.  Quick prototyping

5.  Plastic injection molding

6.  Metal sheet stamping

7.  Final assembly

8.  Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

9.  Custom clearance for material importing and product exporting



Orientronic PCB assembly Equipment:

SMT Machine: SIEMENS SIPLACE D1/D2

                      SIEMENS SIPLACE S20/F4

Reflow Oven: FolunGwin FL-RX860

Wave Soldering Machine: FolunGwin ADS300

Automated Optical Inspection (AOI): Aleader ALD-H-350B

Fully Automatic SMT Stencil Printer: FolunGwin Win-5



PCBA Capacity:

SMT: 2,000,000 solder joints per day

DIP: 300,000 joints per day

Certifications: ISO 9001



Orientronic SMT Production Flow:

Material Receiving → IQC  → Stock  → Material to SMT  → SMT Line Loading  → Solder Paste/Glue Printing  →Chip Mount  → Reflow  → 100% Visual Inspection  → Automated Optical Inspection (AOI) → SMT QC Sampling  →SMT Stock  → Material to PTH  → PTH Line Loading  → Plated Through Hole  → Wave Soldering  → Touch Up  →100% Visual Inspection  → PTH QC Sampling  → In-Circuit Test (ICT)   → Final Assembly  → Functional Test (FCT) → Packing  → OQC Sampling  → Shipping



Requested information for PCB assembly:

1.  Gerber file of the bare PCB board

2.  BOM (Bill of material) for assembly

     To short the lead time, please kindly advise us if there is any acceptable components substitution.

3.  Testing Guide & Test Fixtures if necessary

4.  Programming files & Programming tool if necessary

5.  Schematic if necessary



Our advantages:

1. We’ll return the tooling cost and give discount for repeat order more than 3 square meters.

2. Within 6 hours, quotations and suggestions can be given after checking the gerber.

3. If you have schematic without gerber, pleasure to design it for you.

4. If you’d like change two boards into one for simplifying, pls.inform us details.



Welcome to our trading shows:

1.The HKCEC dated 2012.10.13-2012.10.16   Booth number: 5G-G08

2.The Electronica in Munich, Germany dated 2012.11.13-2012.11.16   Booth number: B1-474-2

3.The CES in Alaska,America dated 2013.01.08-2013.01.11    Booth number: 70924

4.The CROCUS EXPO in Russia dated 2013.04.10-2013.04.12   Booth number : L32

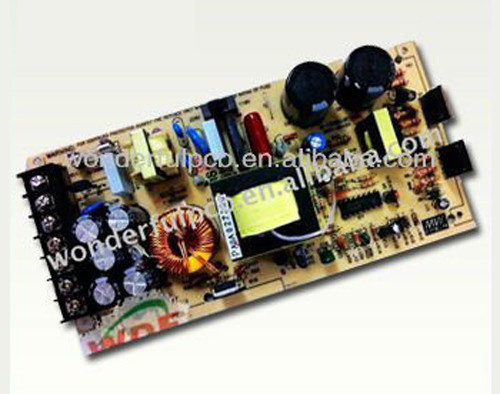

Product shows:

Company Information



Shenzhen Wonderful technology Co.,LTD.



Is a professional design company of printed circuit board or printed circuit board assembly manufacturing.Founded in 1996,Founded in Hong Kong in 2002 Wonderful PCB(HK)Limited By the end of 2007 by total assets of nearly 100 million yuan. Nearly 20,000 square meters,the workshop area more than 700 employees,40,000 sq.m/design production capacity.The company has passed ISO9001-2000 certification and UL certification,ISO14001 certificate,and regarded as "shenzhen by shenzhen hi-tech enterprise". The company product widely used in communication,medical,industrial control,household appliances,etc,the products are mainly exported to southeast Asia,Europe and area.We can manufacture PCB,PCBA and other related products according to your demands






Contact us to check out great PCBs and full details, we will reply to you with prices in one working day!



  • OEM services provided
  • Certificate: ROHS, UL, ISO9001-2000, ISO14001
  • Factory direct price
  • Paypal available

QC process
